QuickFacer
Micro facing machine
QuickFacer is a compact, high-performance tube facing tool designed for precision weld end preparation and weld removal. This portable micro lathe is suitable for a wide range of tube materials, including stainless steel and high-chromium alloys. The QuickFacer machine allows for machining tubes from 8,00 up to 38,00 mm OD (0.314"–1.496"), with a locking range of 7,5 to 36,00 mm (0.295"– 1.417") and a feed stroke of 15 mm (0.590"). As a standard Quickfacer is equipped with a 50 mm cutting head.
Applications

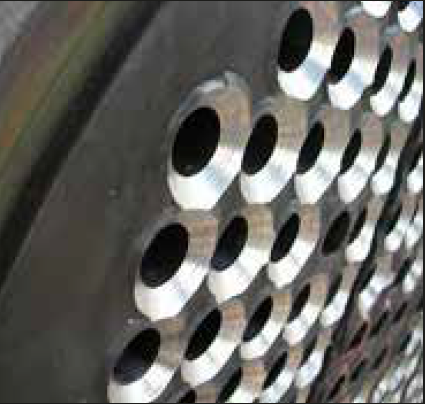

- Heat exchanger retubing and weld end preparation in oil refineries
- Condenser tube weld removal and end facing in power plants
- Stainless steel process tubing fabrication and repair in chemical plants
Specifications
- Working range ID OD
- 0.315 - 1.496 in / 8,00 mm - 38,0 mm
- Locking range ID
- 0.295 - 1.417 in / 7,50 mm - 36,00 mm
- Feed stroke
- 0.591 in / 15,00 mm
- Power
- 0.00 hp / 0,7 kW
- Free speed
- 300 RPM
- Torque
- 13.28 ft.lbs / 18 Nm
- Air use
- 0,48 m³/min
- Tool weigth
- 7.70 lbs / 7,7 Lbs
